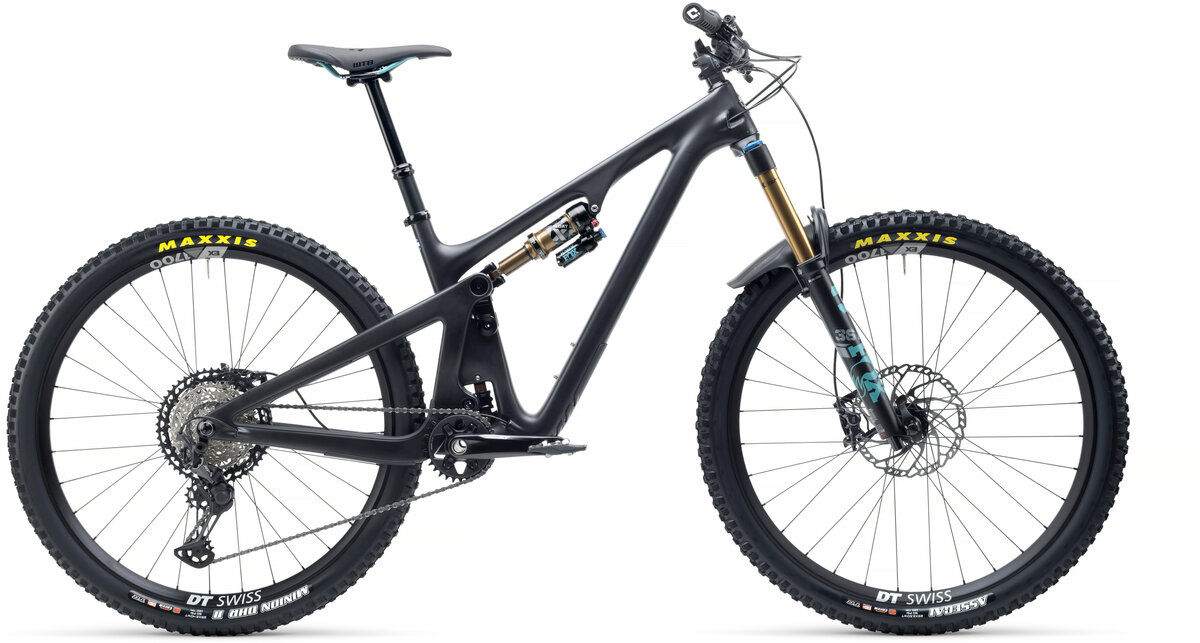

Yeti Cycles SB130 TLR T1

Yeti Cycles SB130 TLR T1
  • Color: Raw Carbon
  • Color: Rhino
  • Color: Turquoise
  • Color: Watermelon
$11,100.00
Color:
Turquoise
Options:
DT Swiss Custom EX 1700 Wheelset
Size:
Medium
Please select options
This item might not be able to be shipped, however it can be purchased online and picked up at your convenience. Please call the store to see if shipping is available.

Details

The rebel yell of the middle child. Fed a steady diet of super-tech climbs. The SB130 was built to crush the biggest terrain. No trail "too" anything. Point it up or down. Enter a last-minute enduro just for the eff of it. We say no one bike can rule all. But the SB130? one bike that rules.

Geometry

Geometry Chart:
SIZESMALLMEDIUMLARGEX-LARGE
A SEAT TUBE LENGTH (mm) 380 410 450 495
B TOPTUBE LENGTH (mm) 570.7 601.9 625.2 653.4
C HEADTUBE ANGLE 65.5 65.5 65.5 65.5
D EFF. SEAT TUBE ANGLE 77.1 77 76.9 76.9
E CHAINSTAY LENGTH (mm) 433 433 433 433
F WHEELBASE (mm) 1173.9 1205.6 1230.2 1259.7
G ESTIMATED BB HEIGHT (mm) 337.6 337.7 337.7 337.7
H STANDOVER (mm) 723.5 725.9 728.2 730.6
I HEADTUBE LENGTH (mm) 95 99.2 110.2 121.2
J AXLE TO CROWN (mm) 557.1 557.1 557.1 557.1
K OFFSET (mm) 44 44 44 44
L STACK (mm) 611 614.8 624.8 634.8
M REACH (mm) 430.2 460.2 480.2 505.2
N FRONT CENTER (mm) 740.9 772.6 797.2 826.7
Sizes:
Small 155 cm - 170 cm
Medium 165 cm - 180 cm
Large 178 cm - 191 cm
X-Large 185 cm - 201 cm

Specs

Frame TURQ Series carbon fiber frame, Switch Infinity suspension technology, press-fit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, integrated derailleur hanger, and axle.
Fork FOX FACTORY 36 GRIP 2/160MM
Wheels Select from dropdown above
Tires Front: MAXXIS ASSEGAI 2.5 EXO+
Rear: MAXXIS MINION DHR II 2.4 EXO+
Bottom Bracket SHIMANO XT BB92
Crankset SHIMANO XT 30T 170MM
Shifters SHIMANO XT
Rear Derailleur SHIMANO XT
Cassette/Freewheel SHIMANO XT 10-51
Chain SHIMANO XT
Brakes SHIMANO XT 4 PISTON
Rotors SHIMANO 203/SHIMANO 180
Handlebars YETI CARBON 35X800MM
Tape/Grips ODI ELITE PRO
Stem RACE FACE AEFFECT R 35X50
Headset CANE CREEK 40 INTEGRATED
Seatpost FOX TRANSFER 31.6MM / SM: 125MM, MD: 150MM, LG/XL: 175MM
Saddle SILVERADO CUSTOM

* Subject to change without notice.
