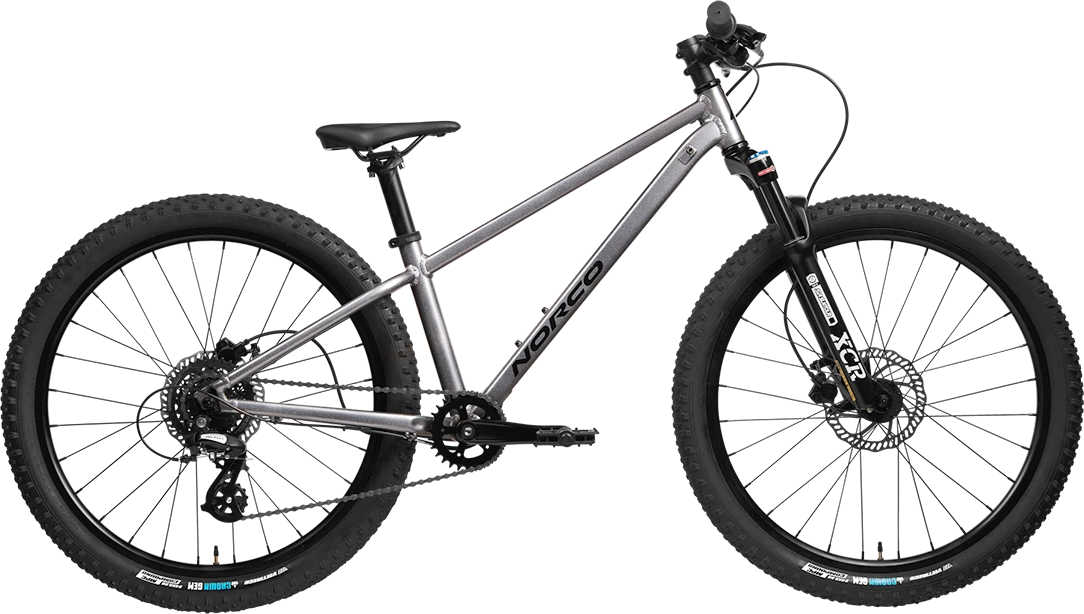

Norco Fluid HT 24.1

Norco Fluid HT 24.1
This item is currently not available.


The Fluid HT 24.1 provides evolved fit, handling and ride quality that'll elevate every young riders' trail experience.

The Fluid HT 24.1 is the ultimate singletrack adventure hardtail. The progressive aluminum hardtail is dropper post compatible, features internal cable routing and provides next-level Trail performance for riders from 4'2" to 4'8".

Reasons It's Rad
- Engineered for real rides and unlimited potential.
- Always find the right gear with quality components.
- Stopping power with minimal effort for maximum control.
- Cable routing balances keeping tidy and maintenance.
- Created to meet the needs of evolving riders.


Geometry Chart:
Wheel Size (in)24"
Travel (mm front) 80
Reach (mm) 365
Stack (mm) 513
Head Tube Angle (°) 66
Seat Tube Length (mm) 305
Effective Seat Tube Angle (°) 73
Rear Centre Length (mm) 380
Bottom Bracket Drop (mm) 43
Bottom Bracket Height (mm) 267
Horizontal Top Tube (mm) 522
Wheelbase (mm) 995
Head Tube Length (mm) 90
Crank Length (mm) 152

24" Wheel SizeRider Height (in)Rider Height (cm)
Growing In Period 4'1" - 4' 2 1/2" 125 - 127
Optimal Fit 4' 2 1/1" - 4'8" 127 - 143


Frame Aluminum, Internal Routing, Internal Dropper Post Compatible
Fork SR Suntour XCR Air, Lockout, 80mm Travel, Light Tune
Rims Aluminum Double Wall, 28H, 24"
Hubs Front: Alloy, 9x100mm, 6 Bolt
Rear: Alloy, 10x135mm, HG, 6 Bolt
Spokes Stainless
Tires Vee Crown Gem 2.25"
Bottom Bracket Sealed Bearing, Square Taper
Crankset Alloy 3 Piece, 28T Narrow Wide, 152mm
Shifters Shimano Altus SL-M315 RapidFire
Rear Derailleur Shimano Altus, Black
Cassette/Freewheel SunRace, 11-34T, 8 Speed
Chain KMC
Brakes Tektro HD-M286 Hydraulic
Rotors Tektro, 6-Bolt
Brake Levers Tektro 2-Finger Jr.
Handlebars Alloy Jr., 600mm, 30mm Rise
Tape/Grips Norco Youth
Stem Alloy, 45mm Length, 31.8mm Clamp
Headset External Cup
Saddle Norco Youth
Pedals Jr. MTB Flat, Black

* Subject to change without notice.
