Kona El Kahuna SUV

Kona El Kahuna SUV
  • Color: Satin Jeep Green
  • Color: Landrover Green
This item is currently not available.

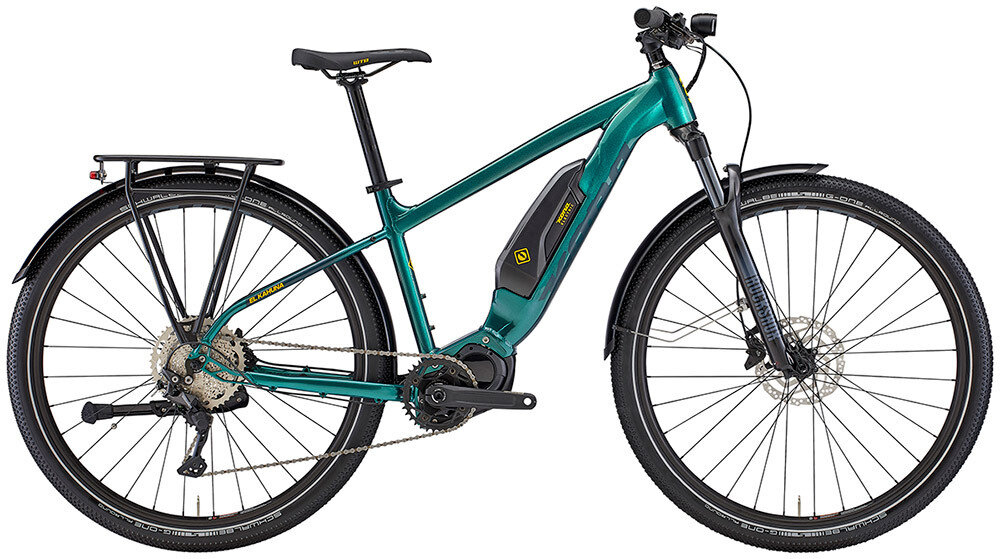

For those that love the idea of carrying gear with the assistance of an e-MTB the El Kahuna SUV is the answer! Like its sibling, the El Kahuna, the SUV features a sturdy aluminum frame and 29” wheels. The big differences are the addition of front and rear lights, and a rear rack which is integrated with a fender keeping you cleaner while you carry that camping gear up that big gravel road. A 100mm fork smooths out the bumps, and powerful disc brakes keep you in control while you rally around the campground’s gravel trails and singletrack.


Frame Kona 6061 Aluminum Butted
Fork Rockshox 35 Silver R Air 100mm Tapered 110 Spacing
Headset FSA No.57BP
Rear Shock n/a
Rims/Wheels WTB ST i27 TCS 2.0
Hubs Shimano 110x15mm (Front) & Shimano 135x10mm (Rear)
Spokes Stainless 14g
Tires Schwalbe G-One Allround 29x2.25"
Crankset FSA E-Bike
Chainwheel 36t
Chain Shimano HG54
Front Derailleur n/a
Rear Derailleur Shimano Deore
Rear Cogs Shimano Deore 11-46t 10spd or Microshift XLE 11-42t 10spd
Shifters Shimano Deore
Handlebars Kona XC/BC Riser
Tape/Grips Kona Key Grip
Stem Kona XC
Brake Levers Shimano MT4100
Brakes Shimano MT410
Pedals Kona JS2
Saddle WTB Volt
Seat Post Kona Thumb w/Offset 31.6mm
Seat Binder Kona Clamp

* Subject to change without notice.
