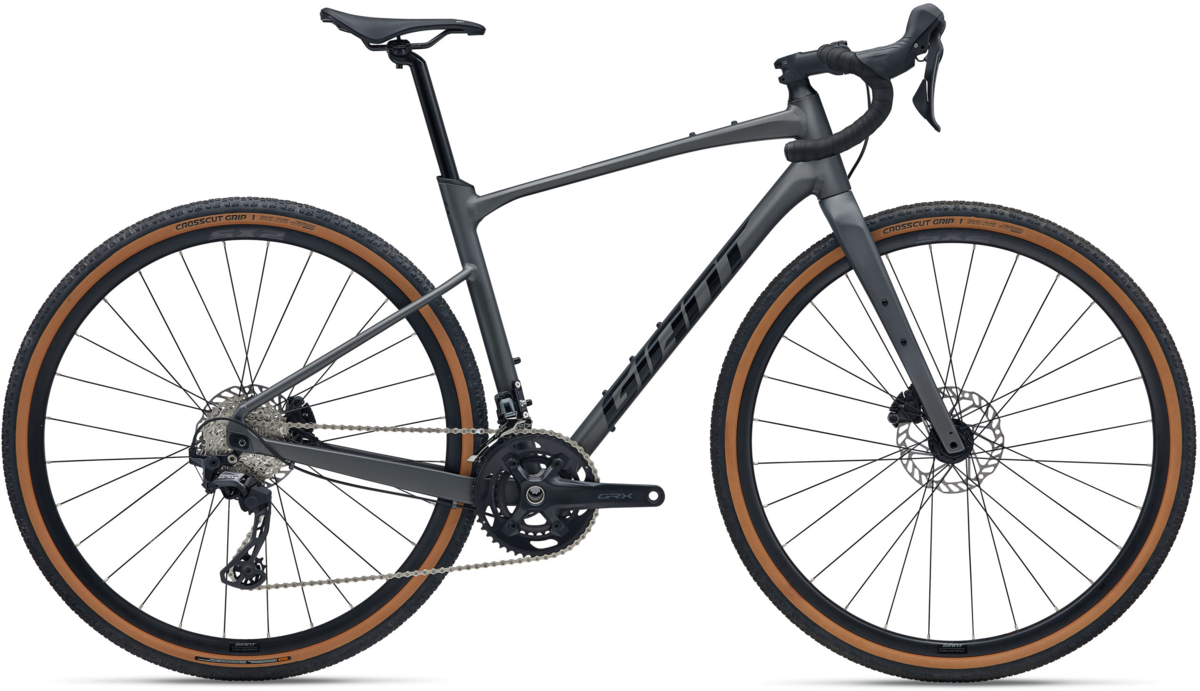

Giant Revolt 0

Giant Revolt 0
$2,699.00
Color: Stealth Chrome
Size: Select size
Wheel Size: 700c
Please select options Unavailable
This item might not be shippable, however it can be purchased online and picked up in-store at your convenience. Please call the store to see if shipping is available.

Details

Now lighter, smoother, and more adaptable to variable conditions and terrain, this reengineered composite gravel bike combines ultra-efficient performance with next-level handling and control.

Confident handling
- Frame is designed with endurance positioning and shorter chainstays for precise handling, agility, and control. A longer reach, shorter stem, and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance
- Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprintin,g or climbing.

Adaptable to the terrain
- A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

bike diagram with measurements referenced in table that follows

Sizes:
SizeX-SmallSmallMediumMedium/LargeLargeX-Large
Geo Setup SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG SHORT | LONG
A Seat Tube Length (mm) 430 450 470 490 510 530
B Seat Tube Angle 74.0° 73.5° 73.5° 73.0° 73.0° 73.0°
C Top Tube Length (mm) 540 550 560 575 585 600
D Head Tube Length (mm) 125 135 150 165 180 195
E Head Tube Angle 70.0° 71.0° 71.5° 72.0° 72.0° 72.0°
F Fork Rake (mm) 50 50 50 50 50 50
G Trail (mm) 78 | 82 72 | 75 68 | 72 65 | 68 65 | 68 65 | 68
H Wheelbase (mm) 1029 | 1039 1025 | 1035 1030 | 1040 1035 | 1045 1045 | 1055 1061 | 1071
I Chain Stay Length (mm) 430 | 440 430 | 440 430 | 440 430 | 440 430 | 440 430 | 440
J Bottom Bracket Drop (mm) 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81 80 | 81
K Stack (mm) 556 570 586 602 616 630
L Reach (mm) 381 381 387 391 397 407
M Stand Over Height (mm) 717 | 724 734 | 741 752 | 759 769 | 776 786 | 793 801 | 810
N Handlebar Width (mm) 420 420 440 440 460 460
O Stem Length (mm) 50 60 70 80 80 90
P Crank Length (mm) 170 170 172.5 172.5 175 175
Q Wheel Size 700x 42C | 700x 42C | 700x 42C | 700x 42C | 700x 42C | 700x 42C |
Sizes:
SizeX-SmallSmallMediumMedium/LargeLargeX-Large
Rider Height (cm) 155–166 cm 159–171 cm 169–181 cm 174–186 cm 179–191 cm 189–200 cm

Specs

Frame ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Rims Giant S-X2 , alloy
Hubs Giant alloy, 12mm thru-axle
Spokes Stainless Steel
Tires Giant Crosscut Grip TR, 700x40c, tubeless
Bottom Bracket Shimano, threaded
Shifters Shimano GRX RX-610, 2x12
Front Derailleur Shimano GRX RX-820
Rear Derailleur Shimano GRX RX-820
Cassette/Freewheel Shimano 105, 11x34
Chain KMC X12L-1
Brakes Shimano GRX RX-410 hydraulic,
Rotors Giant MPH rotors 160mm
Brake Levers Shimano GRX RX-610 hydraulic
Handlebars Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Tape/Grips cork tape with gel
Stem Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost Giant D-Fuse, alloy, 14mm offset
Saddle Giant Grit

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Stealth Chrome / Medium / 700c 04711291204225 1080018125 210000074012
Stealth Chrome / Medium/Large / 700c 04711291204232 1080018126 210000074013
Stealth Chrome / Large / 700c 04711291204249 1080018127 210000074014
